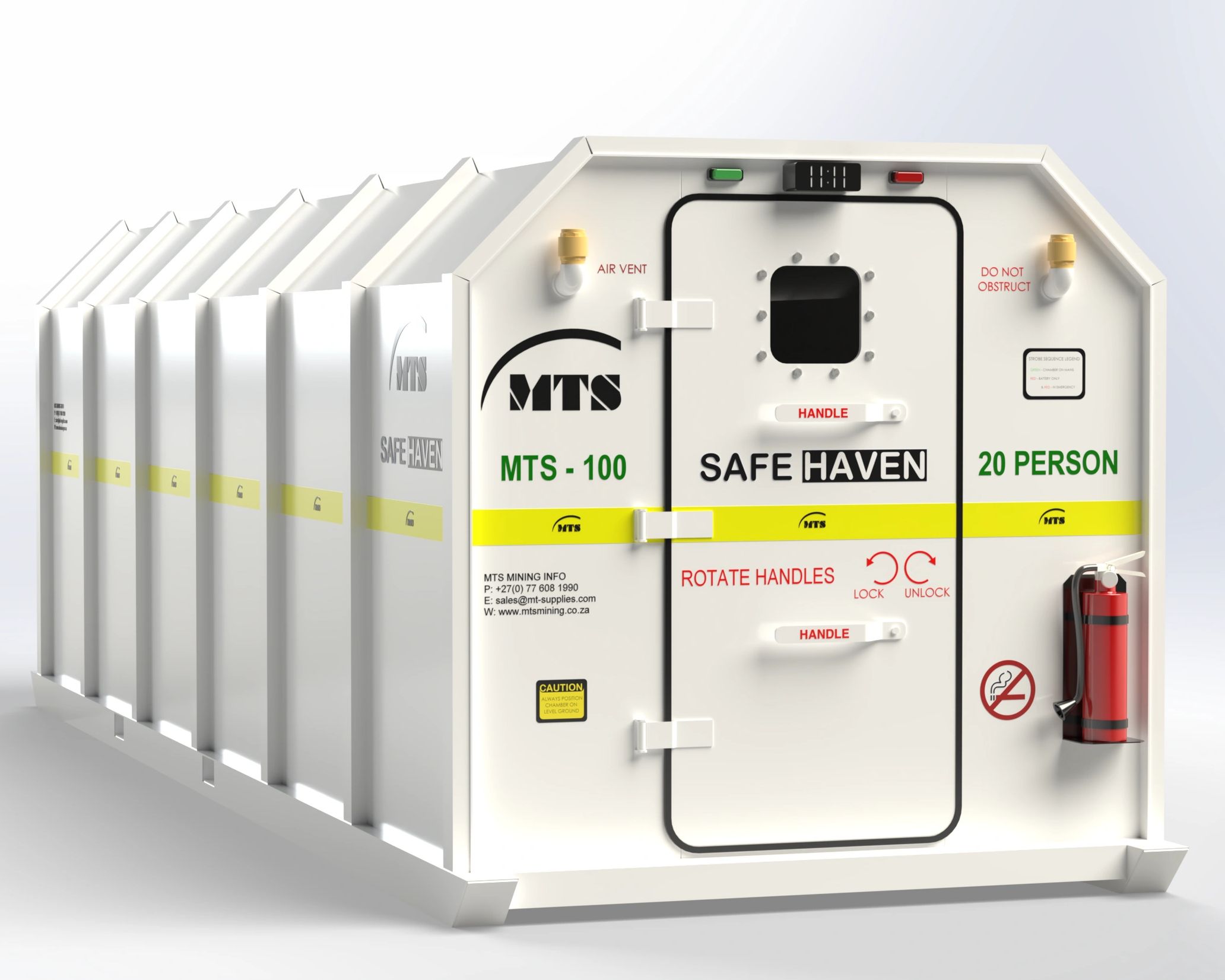

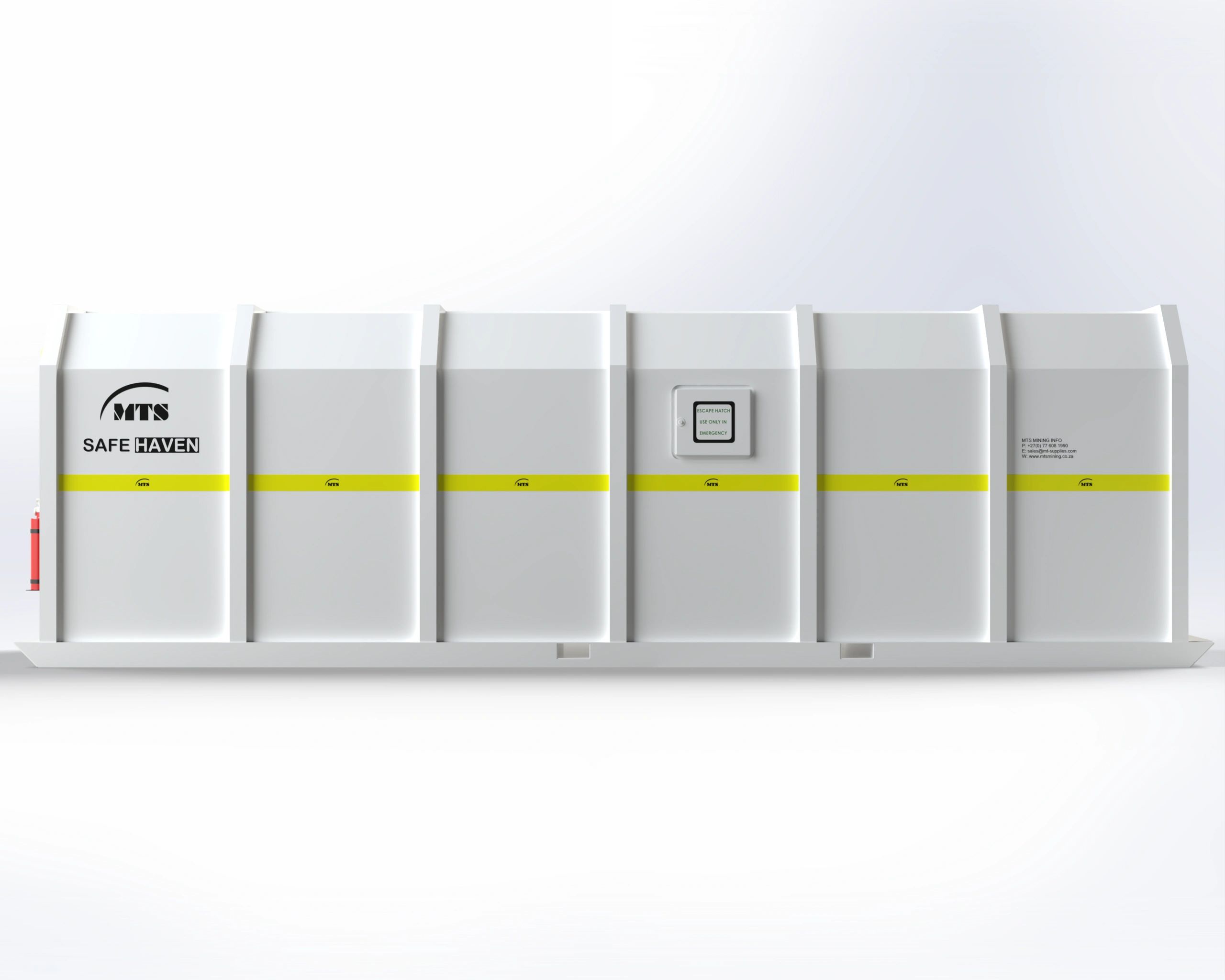

Portable REFUGE CHAMBER SAFE HAVEN Range
We are proud to introduce our Portable refuge chamber, the SAFE HAVEN range. Designed with a focus on safety and reliability, the SAFE HAVEN chambers are engineered to protect and preserve the lives of underground miners.
The SAFE HAVEN range is available in capacities from 4 up to 30 persons, with customizable configurations to meet specific operational requirements. Each chamber is equipped with high-quality life support systems to ensure dependable performance in critical situations.
Standard Features .
- 5mm Steel plate
- Lifting Lugs , Drag points , Forklift Slots.
- Emergency Escape Hatch , Sealable door
- CO & CO2 Scrubber
- Battery Backup 36Hrs , Transformer 415V -1000V
- Air Conditioning , Toilet , Oxygen cylinders
- Red Green Strobe , Siren , Fire Extinguisher
- Compressed Air 3 Stage Filters
MODULAR & OTHER
Modular Design
MTS Mining supplies modular design 4 up to 30 Person is perfect for tight areas or shaft mining where access is by cage or swung below.
Assemble in position.
Front module entry and 2 seats Middle module 4 or 6 seats
Back module life support systems and batteries.
A additional benefit is its upgradeable just add a additional middle seating module and a upgrade to the Back life support module.
Modular Airlock
A popular option with our Modular design Refuge chambers range is a walk thru Airlock module with Options atmospheric pressure , mine compressed air or compressed air in cylinders flushing systems .
Custom Design
Trust us to design a custom chamber for your mine requirements , extended occupancy , Height Width or Length restrictions . other uses Medical first aid rooms , cool down rooms , RCT bogger room , Even relocatable offices
Operating without Compressed Air
Operating without Compressed Air
MTS Mining supplies are receiving many requests to supply chambers without the requirement of Mine Compressed Air , we understand the high running costs of compressed air and the burden of compressed air pipe maintenance. Please ask us about our options and case studies.
African designed & built
Operating without Compressed Air
African designed & built
MTS have engineered and designed our own range of Refuge Chambers they are built in Johannesburg in our fabrication shop and transferred to our fit out facility for assembly.
We can quote freight within South Africa or into any African country and follow with commissioning and staff training
All new and present customers are welcome to visit either facility
FAQs
Operating without Compressed Air
African designed & built
Q Why are MTS prices so much more competitive than your competitors .
A We are African owned and all profits stay within Africa , we will always try and source local content , suppliers and labour. If any imported parts are required we have secured African dealership status ( Batteries , Chemicals , Air Conditioners ) and do pass the savings from this business model onto our customers.
